Description

The chorus effect combines the input signal with one or more frequency-modulated delayed copies of itself. The delay times are varied using a low-frequency oscillator. The typical delay range for chorus is between 20ms and 30 ms. Parameters controlled by the user are delay time, delay depth, wet signal gain, type of low-frequency oscillator waveform, and oscillator frequency. Chorus can make a sound richer by adding depth. Several slight variations of the original input signal played together sound like multiple instruments playing the same part.



Graphical Depiction

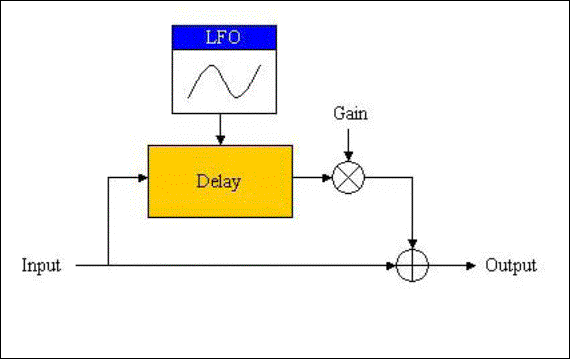

This graphic depicts a two-voice chorus. The original signal is combined with a modified copy of itself. The modifications are based on parameters selected by the user – the range of delay time, oscillator type, and oscillator frequency. Additional voices can be added each with their own parameters.



Effect Formula

y[n] = x[n] + x[n-m]

m = delay time in samples

m = sr * ([maxDelay - minDelay] * [1/2 sin(ft)+1/2] + minDelay)

sr = sampling rate (Hz)

maxDelay = maximum delay time (sec)

minDelay = minimum delay time (sec)

f = oscillator frequency (Hz)

t = time (sec)



Source Code

Chorus.txt

Chorus.csd

(.csd files can be viewed with Notepad or any text editor)



Example Audio Clips

Original Unprocessed Signal

Original

Oscillator = sine

Oscillator Freq = 0.5 Hz

Delay time = 30 ms

Depth = 1 ms

Wet Gain = 1

Add Chorus

Oscillator = sine

Oscillator Freq = 3 Hz

Delay time = 20 ms

Depth = 3 ms

Wet Gain = 1

Add Chorus

Oscillator = sine

Oscillator Freq = linearly increasing

Delay time = 20 ms

Depth = 30 ms

Wet Gain = 1

Add Chorus



References

Lehman, Scott (1996). Effects Explained. Harmony Central.  Retrieved 6/04 from

http://www.harmony-central.com/Effects/effects-explained.html



Mikelson, Hans (2000). Modeling a multieffects processor in Csound. In Boulanger, Richard (2000), The Csound book (pp 575-594). Cambridge, MA: MIT Press.



Schindler, Allan. (1998). Eastman Csound tutorial.  Eastman School of Music. Retrieved 6/04 from

http://www.esm.rochester.edu/onlinedocs/allan.cs/



Vercoe, Barry. (1992). The public Csound reference manual, version 4.16. MIT Press.  Retrieved 6/04 from http://www.lakewoodsound.com/csound/hypertext/manual.htm



Zolzer, Udo. (2002). Digital audio effects. West Sussex, England: Baffins Lane.
