Delay

Home



Description

The delay effect combines the unprocessed signal with a delayed copy of itself.  The amplitude of the delayed copy is scaled by a factor g. The length of the delay is measured in seconds. Since the sampling rate varies, often times it is beneficial to measure the delay in samples. Given a delay time period d (sec), and a sampling rate sr (Hz), the number of samples in the delay can be calculated in the following formula:



Number of samples in the delay = f * s



In using delay, the tempo of the song can be factored in to align the delay time with the beat. Used creatively with precision, the delay can land on or subdivide the beat. Given the tempo in beats per minute bpm, the duration between beats can be calculated by the following formula:



Duration between beats = 60/bpm

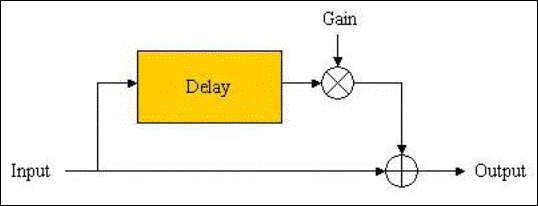

Graphical Depiction of Delay Effect



Signal Formula

 y(n) = output signal

x(n) = input signal

y(n) = x(n) + g * x(n – M)

M = delay time measured in samples

M = sr * d

sr = sampling rate (Hz)

d = delay time (sec)

g = gain



Source Code

Delay.txt

Delay.csd

(.csd files can be viewed with Notepad or any text editor)



Example Audio Clips

Original Unprocessed Signal

Original

1 second delay

delay_1sec

500 ms delay

delay_500ms

250 ms delay

delay_250ms



References

Lehman, Scott (1996). Effects Explained. Harmony Central.  Retrieved 6/04 from http://www.harmony-central.com/Effects/effects-explained.html



Mikelson, Hans (2000). Modeling a multieffects processor in Csound. In Boulanger, Richard (2000), The Csound book (pp 575-594). Cambridge, MA: MIT Press.



Schindler, Allan. (1998). Eastman Csound tutorial.  Eastman School of Music. Retrieved 6/04 from

http://www.esm.rochester.edu/onlinedocs/allan.cs/



Vercoe, Barry. (1992). The public Csound reference manual, version 4.16. MIT Press.  Retrieved 6/04 from http://www.lakewoodsound.com/csound/hypertext/manual.htm

Zolzer, Udo. (2002). Digital audio effects. West Sussex, England: Baffins Lane.
