Description

An equalizer can vary the gain of the different frequencies that compose an audio signal. The most basic and common form of an equalizer is the treble/bass control. The treble level determines the gain of higher frequencies while the bass level controls the lower frequencies. Amplifiers often have gain controls for low range, mid range, and high range frequencies. The graphic below shows a more advanced equalizer, which gives the user level control over specific frequency ranges:





An equalizer is built using filters to isolate specific frequencies ranges.  Individual gains are applied to each of the frequency ranges before they are added together and output.



Graphical Depiction

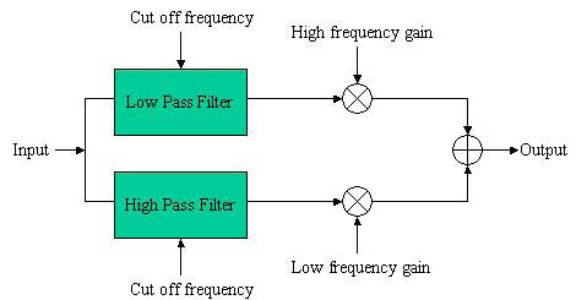

This graphic depicts a treble/bass equalizer.  The input signal is split into two separate frequency ranges – above the cut off frequency (treble) and below the cut off frequency (bass).  The high and low frequency signals are then multiplied by their respective gain levels, combined, and output.  If more than two frequency ranges are desired, additional filters are necessary.  The cut off frequency, high frequency gain, and low frequency gain are independent variables selected by the user.



Effect Formula

y[n] = g1 * x_f1[n] + g2 * x_f2[n] + … + gm * x_fm[n]

y[n] = output signal

g1 = gain of first frequency range

g2 = gain of second frequency range

gm = gain of frequency range m

x_f1[n] = first frequency range of input signal

x_f2[n] = second frequency range of input signal

x_fm[n] = frequency range m of input signal

m = total number of frequency bands



This general equalizer formula divides an input signal x[n] into m different frequency ranges, multiplies them by their respective gains, and combines them into the output signal y[n].



Source Code

Equalizer.txt

Equalizer.csd

(.csd files can be viewed with Notepad or any text editor)



Example Audio Clips

Original unprocessed signal

Original

Low frequencies passed, high frequencies attenuated

Low Pass

High frequencies passed, low frequencies attenuated

High Pass

Low and high frequencies passed, mid level frequencies attenuated

Attenuate Mid-Level



There is static ‘hiss’ audible in the original unprocessed signal.  This hiss has a mid-range frequency that is attenuated by the equalizer in the last example.



References

Lehman, Scott (1996). Effects Explained. Harmony Central. Retrieved 6/04 from

http://www.harmony-central.com/Effects/effects-explained.html



Mikelson, Hans (2000). Modeling a multieffects processor in Csound. In Boulanger, Richard (2000), The Csound book (pp 575-594). Cambridge, MA: MIT Press.



Schindler, Allan. (1998). Eastman Csound tutorial.  Eastman School of Music. Retrieved 6/04 from

http://www.esm.rochester.edu/onlinedocs/allan.cs/



Vercoe, Barry. (1992). The public Csound reference manual, version 4.16. MIT Press.  Retrieved 6/04 from http://www.lakewoodsound.com/csound/hypertext/manual.htm



Zolzer, Udo. (2002). Digital audio effects. West Sussex, England: Baffins Lane.
