Tremolo

Home



Description

Tremolo is a periodic variation in the volume of a sound. It can be implemented by multiplying the input signal by a low frequency oscillator. The variable parameters of the oscillator are amplitude range and frequency. The minimum and maximum values of the oscillator are each between 0 and 1. A minimum of 0 and maximum of 1 will cause the gain to fluctuate between full volume and silence. The rate of the fluctuation is determined by the frequency of the oscillator.

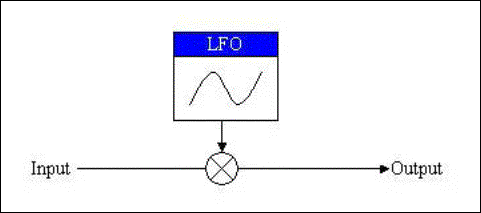

Graphic Depiction



Effect Formula

y[n] = A * x[n]

x[n] = input signal

y[n] = output signal

A = [maxValue - minValue] * [1/2 sin (ft) + 1/2] + minValue

maxValue = maximum oscillator value

minValue = minimum oscillator value

f = oscillator frequency (Hz)

t = time (sec)



Source Code

Tremolo.txt

Tremolo.csd

(.csd files can be viewed with Notepad or any text editor)



Example Audio Clips

Original Unprocessed Signal

Original

Tremolo with a constant frequency of 6 Hz, a minimum value of 0, and a maximum value of 1

Tremolo_6Hz

Tremolo with a linearly increasing frequency ranging from 0 Hz to 40 Hz, a minimum value of 0, and a maximum value of 1

Tremolo_0Hz_to_40Hz



References

Lehman, Scott (1996). Effects Explained. Harmony Central. Retrieved 6/04 from

http://www.harmony-central.com/Effects/effects-explained.html



Mikelson, Hans (2000). Modeling a multieffects processor in Csound. In Boulanger, Richard (2000), The Csound book (pp 575-594). Cambridge, MA: MIT Press.



Schindler, Allan. (1998). Eastman Csound tutorial.  Eastman School of Music. Retrieved 6/04 from

http://www.esm.rochester.edu/onlinedocs/allan.cs/



Vercoe, Barry. (1992). The public Csound reference manual, version 4.16. MIT Press.  Retrieved 6/04 from http://www.lakewoodsound.com/csound/hypertext/manual.htm



Zolzer, Udo. (2002). Digital audio effects. West Sussex, England: Baffins Lane.
