Vibrato

Home



Description

The vibrato effect is created by periodically varying the pitch. The adjustable parameters are magnitude and rate of the frequency variation. This effect is created using principles of the Doppler effect. The Doppler effect, as it applies to this application, states that variation in pitch is due to variation in distance from the sound source. This variation in distance is simulated by implementing a delay, periodically varying the delay time, and completely attenuating the dry signal. When the delay time is increasing, the pitch is lowered. When the delay time is decreasing, the pitch is raised.

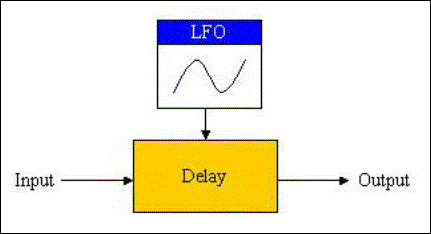

Graphic Depiction



Effect Formula

y[n] = x[n-m]

x[n-m] = delayed input signal

y[n] = output signal

m = length of delay in samples

m = sr * maxDelay * [1/2 sin(ft) + 1/2]

sr = sampling rate (Hz)

maxDelay = maximum delay time (sec)

f = oscillator frequency (Hz)

t = time (sec)



Source Code

Vibrato.txt

Vibrato.csd

(.csd files can be viewed with Notepad or any text editor)



Example Audio Clips

Clip1, unprocessed

Clip1

Clip1, vibrato added at t = 3 sec

Clip1_vibrato

Clip2, unprocessed

Clip2

Clip2, vibrato added at t = 3 sec

Clip2_vibrato

Clip3, unprocessed

Clip3

Clip1, vibrato frequency increased linearly

Clip3_vibrato



References

Lehman, Scott (1996). Effects Explained. Harmony Central. Retrieved 6/04 from

http://www.harmony-central.com/Effects/effects-explained.html



Mikelson, Hans (2000). Modeling a multieffects processor in Csound. In Boulanger, Richard (2000), The Csound book (pp 575-594). Cambridge, MA: MIT Press.



Schindler, Allan. (1998). Eastman Csound tutorial.  Eastman School of Music. Retrieved 6/04 from

http://www.esm.rochester.edu/onlinedocs/allan.cs/



Vercoe, Barry. (1992). The public Csound reference manual, version 4.16. MIT Press.  Retrieved 6/04 from http://www.lakewoodsound.com/csound/hypertext/manual.htm



Zolzer, Udo. (2002). Digital audio effects. West Sussex, England: Baffins Lane..
